Tried & Proven Steel Cattle Handling Equipment

We do custom cattle working facilities for feedlot,
cow/calf & yearling operations.

Please call for current pricing.

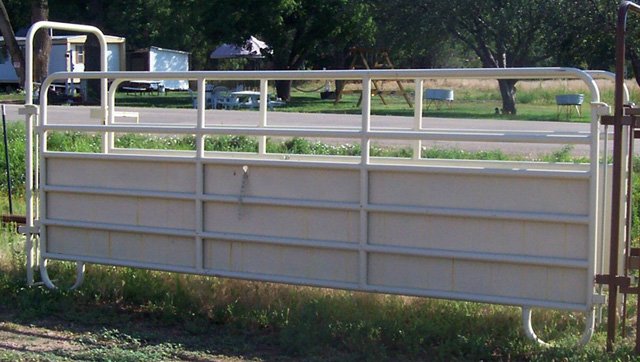

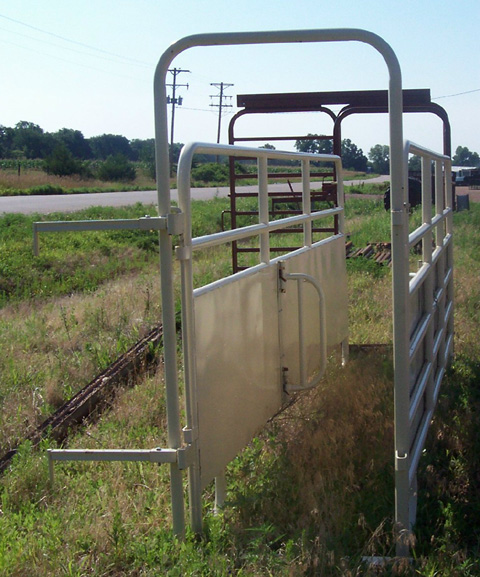

The Poorman's Alley


Side View


Front View

  •  Constructed of 1.90 11 GA. round tube
  • Single side adjusts from 14" to 32"
  •  Components include:
        14" panel, bow with adjustors and gate, backstops
         Pictures above feature (2) 14' panels and (2) bows with adjustors



                                            Backstops (optional)

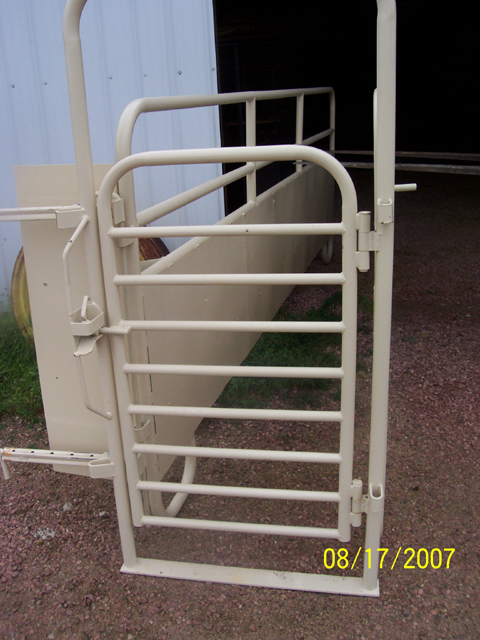

Bow with gate option

Post Mounted Gates

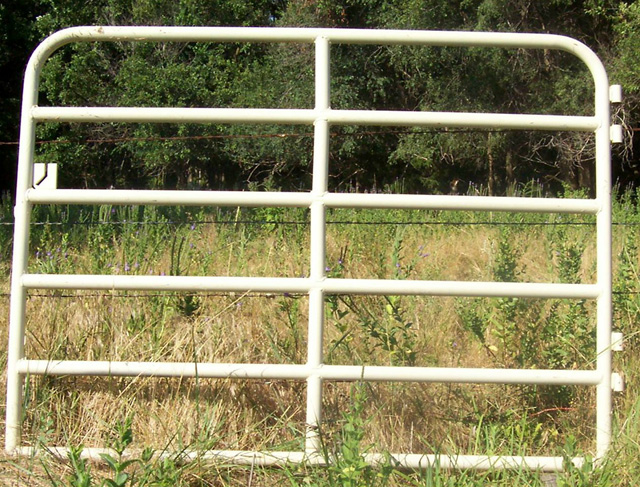

Heavy Duty Gates

Heavy Duty Gate

 • These gates are ideal for crowding and other high stress areas.
• Constructed of 1.66 14 GA round tube.
• Available in 6 bar (50" high) and 7 bar (60" high) in lengths from 3" to 16"
• Chain latch standard

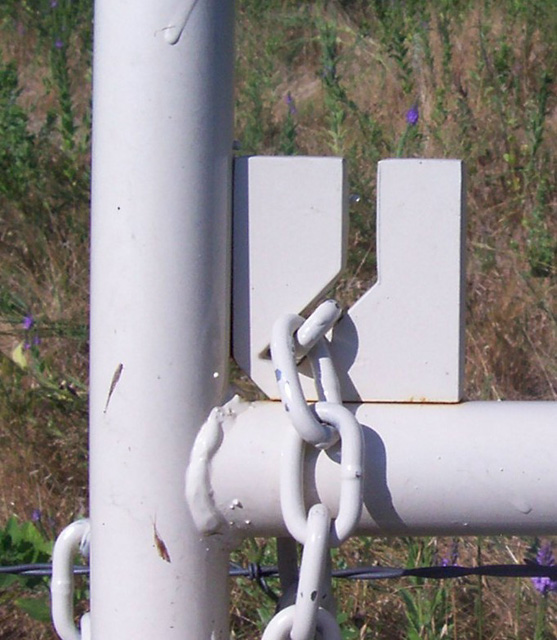

chain latch                    slide latch

 Chain Latch                              Slide Latch

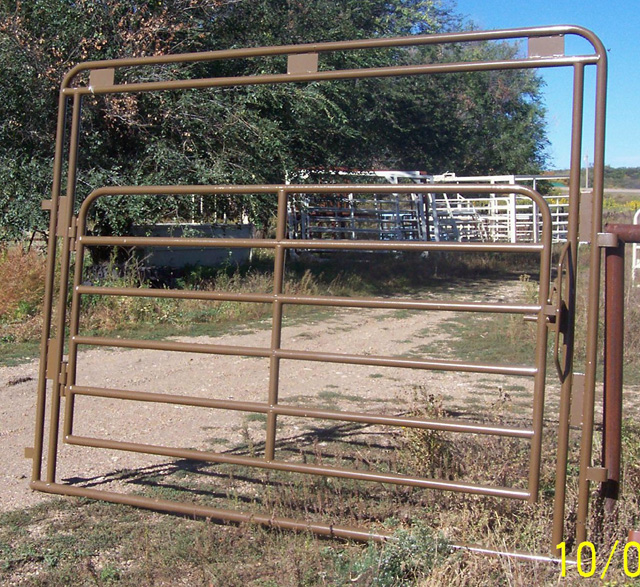

Bow Gates

• Feature double slam latch and heavy duty 6 bar gate.
• Available in 6', 8' and 10'lengths.
• Constructed of 1.66" 14GA round tube
• Features double slam latch and heavy duty 6 bar gate.
• Painted brown

Heavy Duty Gates

These gates are ideal for crowding and other high stress areas.
Constructed of 1.66 14 GA round tube
Available in 6 bar (50" high) and 7 bar (60" high) in lengths from
3' to 16'

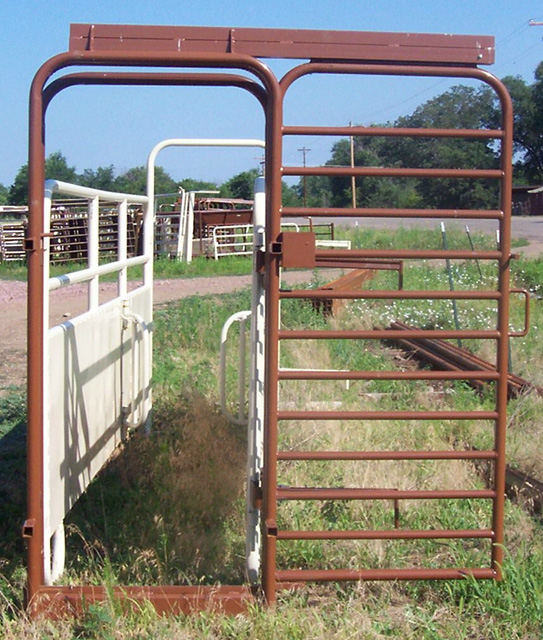

Slide Gate

• Gate slides on roller bearings for ease of operation
• Raised bottom to help prevent freeze down

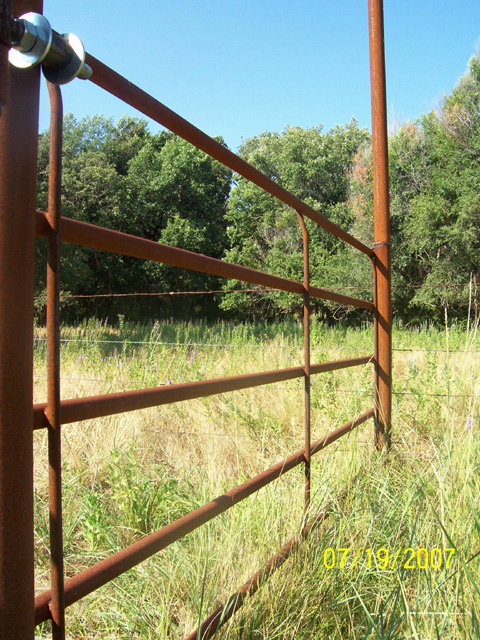

Continuous Fence

• Constructed of 1-1/4" 14 GA. round tube with 5/8" rod
   (5 or 6 bar panels) or 3/4" (7 bar panels)
• 5 bar panels are 49" high
• 6 bar panels are 50" high
• 7 bar panels are 60" high

Portable Panels

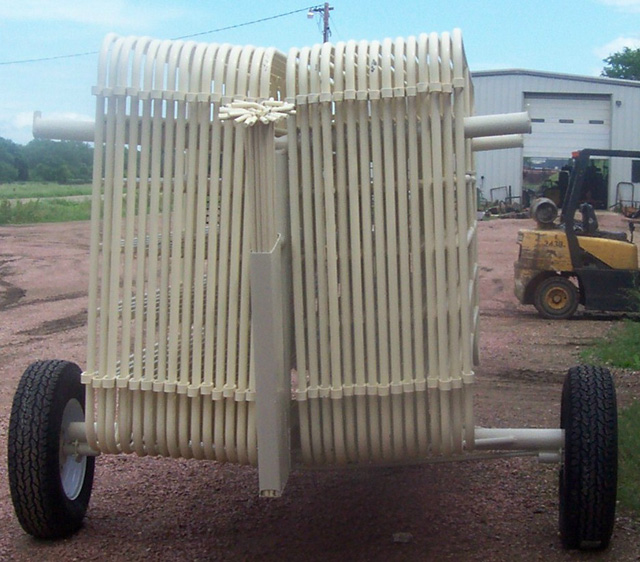

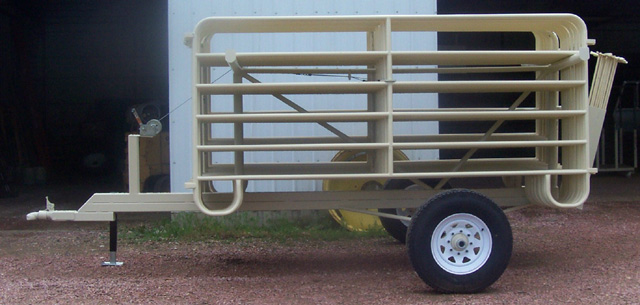

Carrier holds 40 panels


•  60" high and 10' long
•  Constructed of 1-1/4" 14 GA. round tube
    with 5/8" drop pin
•  Lightweight (75 lbs.) yet durable

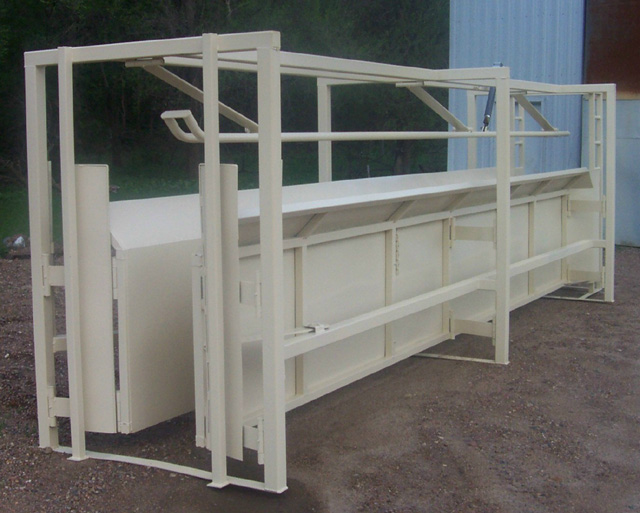

Stationary Cattle Alley and Tubs

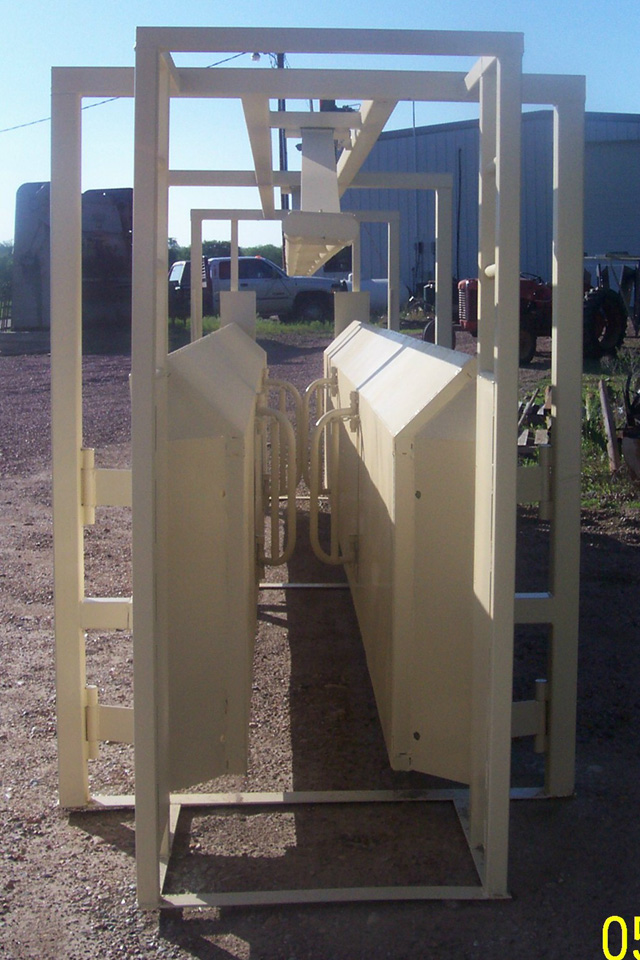

Stationary Cattle Alley
                     • Double side adjusts from 14" to 34"
                     • Easy to adjust
                     • Anti-pile bar to help prevent cattle from piling on top of each other.
                     • 20 feet long

Tubs

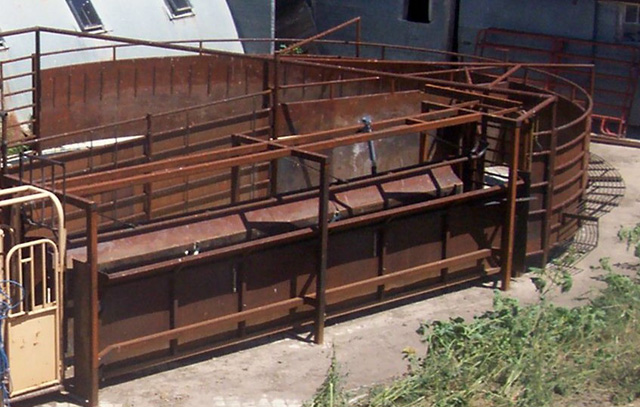

tub with poorman's alley attached

                                 • Half and quarter tubs available
                                 • Feature:
_____                             • Catwalk
_____                             • Double acting gates on half circles
_____                             • Left or right discharge
                                 • Custom-made to fit your needs

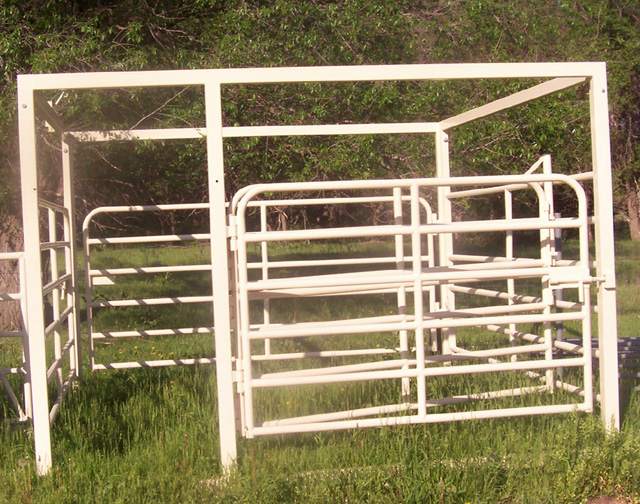

Calving Pen

• Comes with Formost self-catching headgate
                     • Opens on three sides

Contact us :
Hipke Welding / Eagle Designs • 90077 Park Street • Spencer, Nebraska  68777
Phone: Toll Free (866) 791-6456 • (402) 589-1501 • Fax:  402-589-2501
